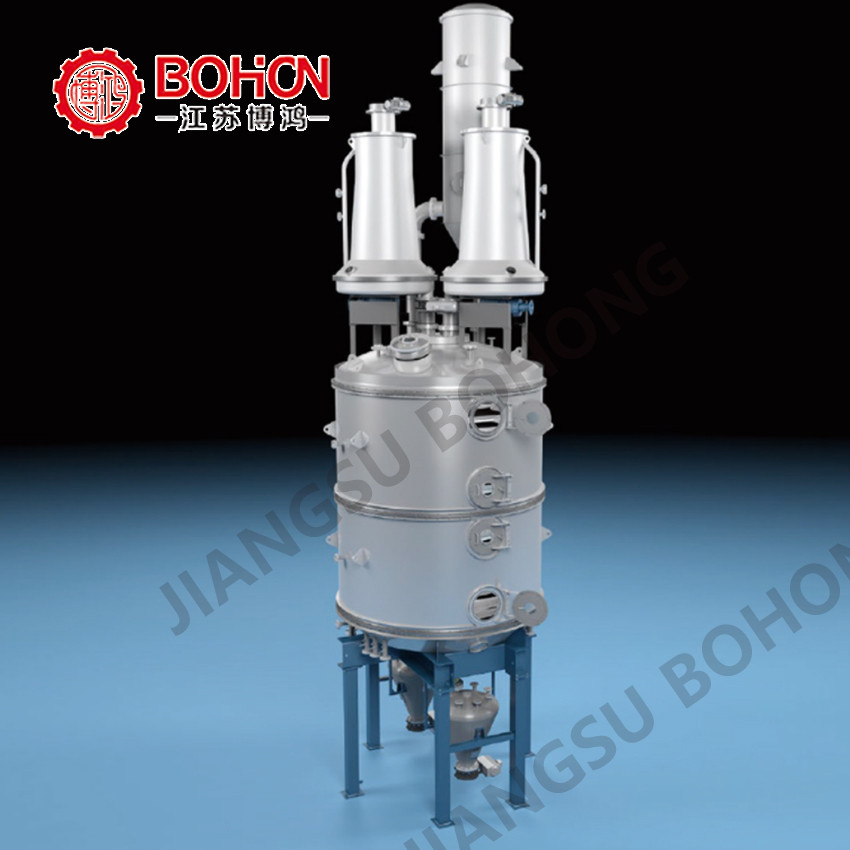

PLG series disc continuous dryer Jiangsu Bohong Drying Company

PLG series disc continuous dryer is an efficient and energy-saving continuous drying equipment, which is often used to deal with particles, powder or paste materials with high moisture content, especially suitable for the drying of heat-sensitive materials. It is designed so that the material is distributed in a thin layer on a series of heating discs within the device, achieving uniform and rapid drying by conducting heat exchange.

First, PLG series disc continuous dryer working principle:

1.Conduction heating : The material is continuously entered into the dryer through the feed port and distributed on the horizontal disk. Each plate is heated by an internal heating medium (such as steam, hot water or thermal oil) to heat the material.

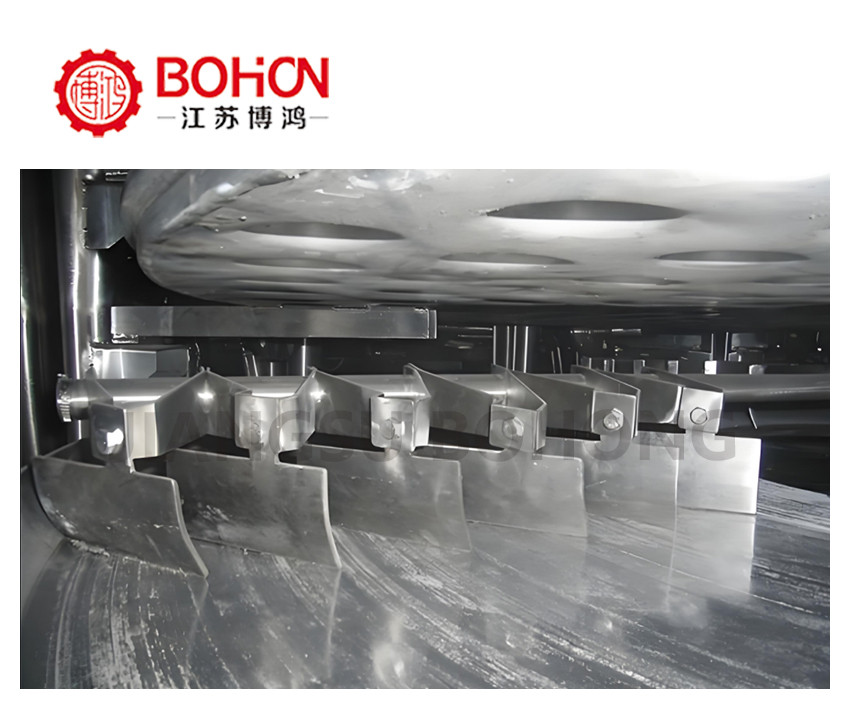

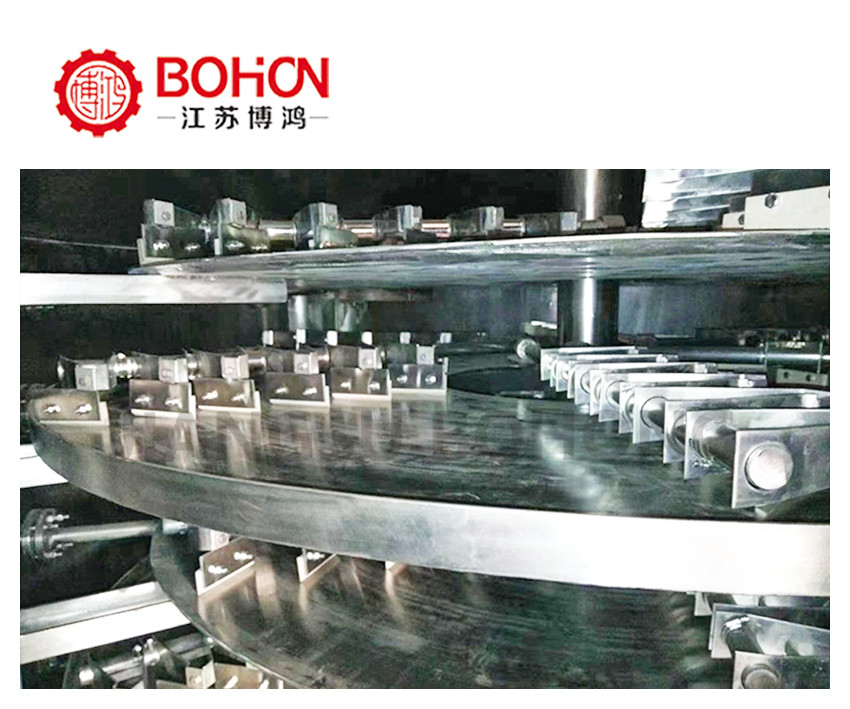

2.Scraper push: The scraper moves slowly on the disk surface, pushing the material to the next plate or outlet, and the material is transferred layer by layer.

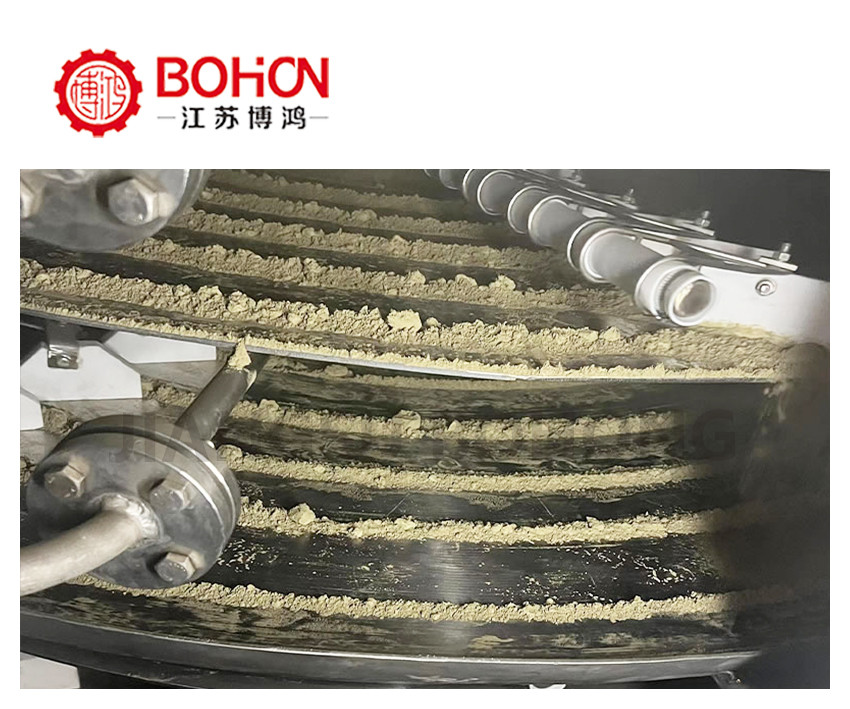

3.Material drying : With the material gradually moved from the upper plate to the lower layer, the heat is transferred to the material, so that the water continues to evaporate. The evaporated water is carried away by the exhaust gas, and the dry material is discharged at the bottom.

4.Exhaust gas emission: The moisture generated during the drying process is discharged through the exhaust system to ensure the air circulation and drying efficiency inside the equipment.

Second, PLG series disc continuous dryer equipment advantages:

1. Strong continuity : The equipment can achieve continuous material in and out, suitable for large-scale production.

2. High heat transfer efficiency : The use of conduction heating, material and heating disc direct contact, high heat transfer efficiency, short drying time.

3. Good controllability : By adjusting the temperature of the heating medium, the speed of the scraper and the residence time of the material, the drying process can be accurately controlled.

4. Compact structure : compact equipment design, small footprint, easy installation and maintenance.

5. Energy saving and environmental protection : The equipment uses heat conduction to dry, low energy consumption, and less exhaust emissions, strong environmental protection.

Third, PLG series disc continuous dryer instructions:

1. Feed and discharge : The material is evenly put into the feed port. During the operation of the equipment, the scraper will push the material to pass layer by layer to the lower layer, and finally discharge from the discharge port.

2. Temperature control: Set the appropriate heating temperature according to the characteristics of the material to ensure drying efficiency.

3. Regular maintenance : Check the heating system and transmission device to ensure smooth operation of the scraper and avoid the phenomenon of card material.

4.Exhaust gas treatment : Configure a suitable exhaust gas emission system to ensure that the water vapor or exhaust gas generated in the production process can be discharged smoothly.

Fourth, PLG series disc continuous dryer compared with traditional drying equipment advantages:

1. High drying efficiency : Due to the conduction heating method, the thermal efficiency of the disc continuous dryer is higher than that of the traditional hot air drying, the energy utilization rate is better, and the drying speed is fast.

2. Uniform drying of materials : Multi-layer plate design ensures uniform distribution of materials, more uniform drying process, not easy to over-dry or dry incomplete.

3. Strong processing capacity : suitable for handling viscous materials, paste materials and other traditional equipment is not easy to dry materials.

4. Good energy saving effect : disc dryer has high heat transfer efficiency, relatively low energy consumption, and lower operating costs.

Fifth, PLG series disc continuous dryer application range:

1. Chemical industry : Used for drying catalysts, resins, pigments, dyes and other chemical products.

2. Pharmaceutical industry : Suitable for drying drug intermediates, powder and other drug materials.

3. Food industry : can dry condiments, starches, food additives and other food raw materials.

4. Environmental engineering : Used for the drying treatment of sludge and waste residue.

5. Other fields : It is also widely used in feed, minerals and other areas that require rapid drying.

The PLG series disc continuous dryers manufactured by Jiangsu Bohong Drying Equipment Co., Ltd. are excellent in terms of high energy efficiency and flexibility in material handling, especially for applications requiring continuous production and uniform drying quality.
