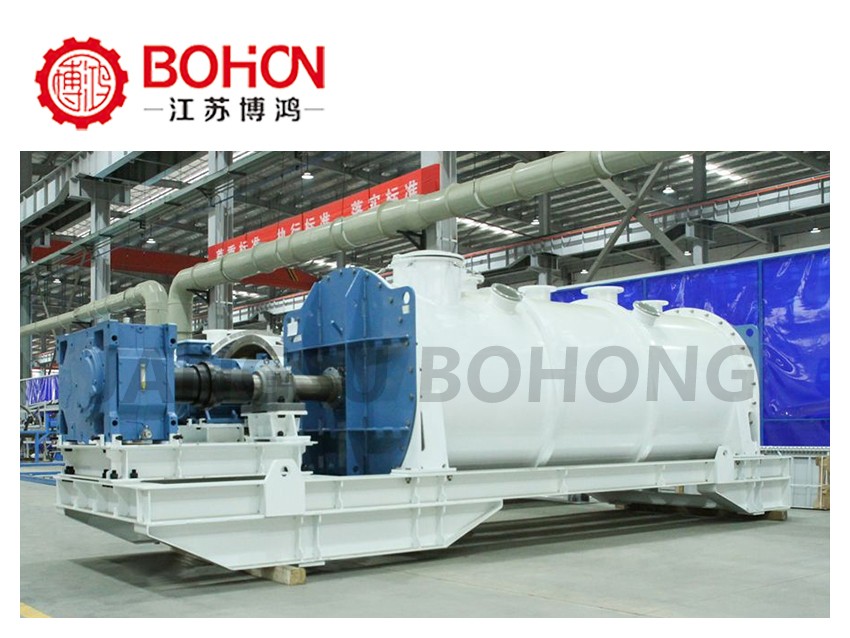

WLDH Series Internal Heating Screw Belt Mixer Dryer produced by Jiangsu Bohong Co.Ltd.

WLDH Series Internal Heating Screw Belt Mixer Dryer

Ⅰ Equipment overview

The internally heated ribbon mixing dryer is a major innovation in modern mixing technology and is designed to meet the mixing and drying needs of high efficiency, energy saving and versatility. It integrates efficient mixing capacity and fast internal heating and drying system, and completely solves the shortcomings of traditional mixing equipment in mixing efficiency, heating uniformity and energy consumption. Through the unique design of the ribbon mixing structure and internal heating system, the equipment can be efficiently heated and dried while mixing materials, significantly shortening the production cycle, improving product quality and reducing production costs.

Ⅱ Explanation of characteristics

2.1. Direct drive, high efficiency and energy saving : The internal heating screw belt mixing dryer uses the reducer to directly drive the mixer to rotate, which has high transmission efficiency and low energy consumption. This design reduces the friction loss of the transmission components and improves the energy efficiency.

2.2. Wide applicability : The equipment is suitable for the mixing of a variety of materials, including but not limited to the mixing of powder and powder, powder and liquid, and can also be used as reaction equipment and drying equipment, showing strong versatility and flexibility.

2.3. Spray device Optional : According to user requirements, can be equipped with a spray device to achieve accurate injection of appropriate liquid into the material during the mixing process to meet the specific process requirements.

2.4. Excellent mixing uniformity : With its unique mixing structure and optimized design parameters, the internal heating screw belt mixing dryer can achieve uniform mixing of materials up to 1:10,000 ratio, especially good at handling materials with large specific gravity differences to ensure uniform mixing without dead angles.

2.5. Mild mixing, reduce crushing : The mixing process is mild, the crushing of the material particles is small, especially suitable for the material mixing with high particle form requirements.

2.6. Shredding device Optional : For materials that are easy to aggregate, a shredding device can be installed on the mixing cylinder to effectively prevent material agglomeration and ensure the mixing effect and product quality.

2.7. Efficient internal heating system : Heat transfer medium (such as hot water, heat conduction oil, steam, etc.) is passed into the jacket of the outer wall of the mixing cylinder and the hollow screw at the same time, and the circulation and cross-convection of the material in the mixing process are used to achieve rapid and uniform heating. At the same time, the water vapor is discharged in time through the vacuum port on the cover to accelerate the drying process and shorten the production cycle.

2.8. Customized Service : For special materials (such as specific gravity greater than 1.5, large viscosity, particle size greater than 5mm, etc.), Jiangsu Bohong Drying Company provides professional customized consulting services to ensure that the equipment can meet the individual needs of customers.

With its excellent mixing effect, efficient heating and drying capacity and wide applicability, the internal heating ribbon mixing dryer manufactured by Jiangsu Bohong Drying Production has become an indispensable production equipment for many industries such as pharmaceutical, food and fine chemical industry.
