Gravityless Mixer produced by Jiangsu Bohong Co.Ltd.

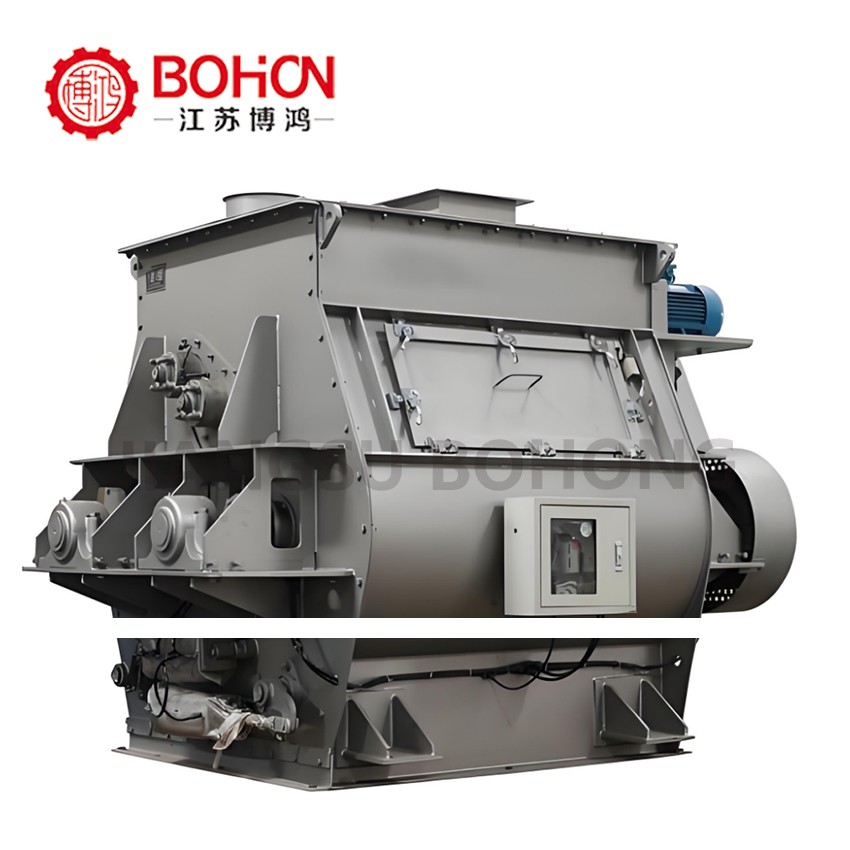

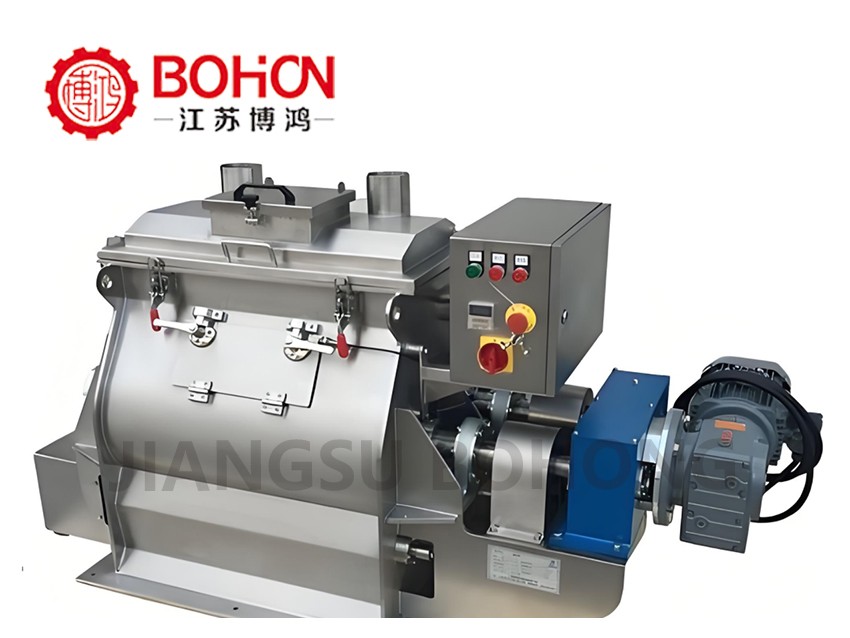

Gravityless Mixer

Ⅰ. Gravityless Mixer Overview

Gravityless Mixer is an efficient mixing equipment for materials in various forms, such as powder, granule, paste and so on. Its unique mixing principle and structural design make it widely used in many industries, such as food, chemical, pharmaceutical, building materials and so on. In this article, we will introduce the working principle, equipment features, application areas and purchase guide of gravityless mixer.

Ⅱ. Working Principle of Gravityless Mixer
Gravityless Mixer adopts horizontal design and follows the following principle when mixing materials:
The double screw paddles rotate, generating centrifugal force, so that the materials form a flow in the mixing chamber.
During the mixing process, shear, extrusion and friction occur between the materials, which helps to improve the mixing effect.
The materials are in a weightless state inside the mixing chamber, which makes the effect of the differences in specific gravity and particle size between the materials on the mixing uniformity reduced.

III. Structural characteristics of gravityless mixer

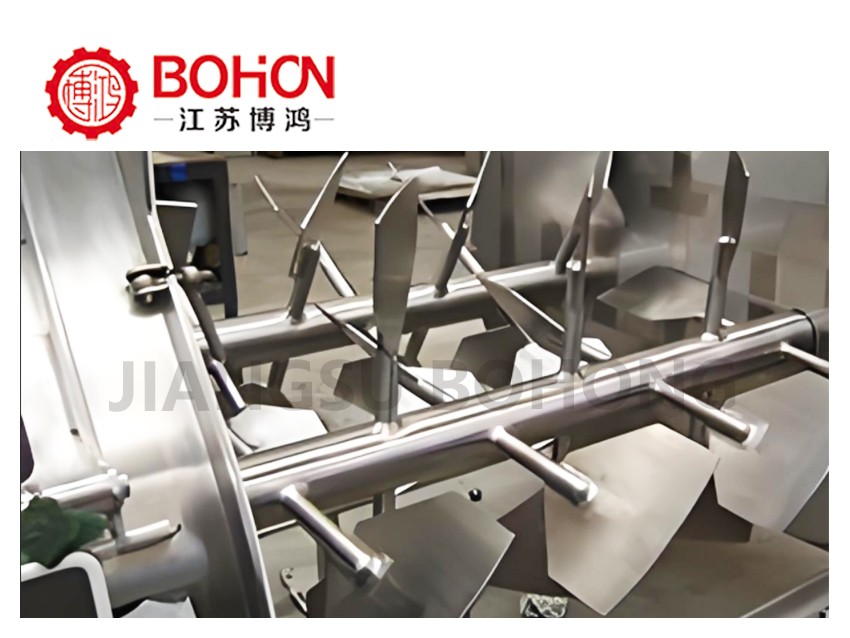

3.1 Dual-shaft paddle design: two parallel shafts rotating in opposite directions are equipped with paddles of different preset angles, and the linear velocity of the paddle rotating and churning the material exceeds the critical rotational speed, so that the material can reach the high point of the parabola (gravity-free point). In order to reduce the replacement cost of wearing parts of the equipment, the paddle blade can be made into two-piece type, in the blade base pad a piece of movable small blade, can be directly replaced by the worn small blade.
3.2 W-shaped mixing chamber: in the W-shaped mixing chamber is equipped with a pair of shafts rotating in opposite directions, the shafts are installed with a certain angle, the number of overlapping paddles, which can form a flow layer inside the mixing chamber, so that the material is better mixed.
3.3 Discharge in various forms: the discharge form is generally pneumatic (manual) flap valve, the arc valve is closely embedded in the cylinder, flush with the inner wall of the cylinder, there is no accumulation of materials and the phenomenon of mixing dead ends. The standard type has a large open door and a small open door, the large open door opening to the side of the cylinder, discharging clean and fast, less residue.

Ⅳ. Application areas of gravityless mixer

Gravityless mixer is widely used in the following industries:
Food processing: used to mix various food ingredients, such as flour, sugar, salt, spices, etc..
Spice industry: used to mix a variety of spices and flavors.
Pharmaceutical manufacturing: used to mix a variety of pharmaceutical raw materials and excipients.
Chemical industry: used to mix a variety of chemical raw materials.
Pesticides, veterinary drugs manufacturing: used to mix a variety of pesticides, veterinary drugs raw materials.
Building materials industry: for mixing cement, mortar and other building materials.

V. Selection and purchase guide of non-gravity mixer
5.1 Manufacturer reputation: choose manufacturers with good reputation and rich experience to ensure the quality of equipment.
5.2 Equipment performance: understand the mixing effect of the equipment, production efficiency, adaptable range and other performance indicators, choose the equipment to meet the production needs.
5.3 equipment price: comprehensive consideration of equipment performance, after-sales service and other factors, choose cost-effective equipment.
5.4 After-sales service: understand the manufacturer's after-sales service policy, to ensure that the equipment in the use of the process of timely technical support and maintenance services.

VI. Products
Jiangsu Bohong Zhongjin Granulation Equipment Co., Ltd. is an influential enterprise in the field of drying, granulation, coating and other equipment.
It produces a wide range of products, including:
6.1 Drying equipment: including spray dryer (such as pressure spray drying equipment, centrifugal spray dryer, horizontal spray dryer, etc.), vacuum paddle dryer, disk dryer, rake dryer, hot air circulation oven, vibration fluidized bed dryer. These drying equipments have wide range of application, whether it is organic or inorganic materials, granular materials, viscous materials, pasty materials and other different forms, as well as materials with high moisture content can be dried. For example, vacuum paddle dryer can be used for petrochemical, feed, chemical and other industries, a variety of materials drying.
6.2 Granulation equipment: fluidized bed granulation dryer, high-efficiency wet mixing granulator, dry granulator and so on. Dry granulator adopts unique sealing structure, which can effectively prevent powder materials from entering into the inner bearing and improve the sealing effect.
6.3 Coating equipment: such as fluidized bed granulation coating machine, fluidized bed bottom spray coating machine, high-efficiency coating machine and so on. The company provides truly multi-functional granulation coating equipment, tailor-made for the laboratory, in the same equipment without the need to replace any equipment components to complete the powder, granules, micro-pills, crystals, capsules, tablets coating and other functions.
6.4 Mixing equipment: like SBH series three-dimensional mixer, gravityless mixer, plow knife mixer and so on. Three-dimensional mixer is suitable for pharmaceutical, chemical, food and other units that need to mix different materials, mixing uniformity.
6.5 Other equipments: there are square cone mixer, centrifugal pill making machine, boiling dryer, extruding and rounding machine, etc., which can meet the production needs of different industries.
