Ⅰ Equipment overview

V-type mixer produced by Jiangsu Bohong Mixing Production Company is a kind of equipment mainly used for mixing powder and powder, especially suitable for products that require high mixing uniformity, less mixing amount, and require mixing without dead Angle. The design of the equipment generally adopts the way of cylinder rotation to ensure that the material is fully moved and distributed during the mixing process.

The working process of V-type mixer produced by Jiangsu Bohong Mixing production Company can be divided into several stages, such as stop feeding, boot mixing, stop discharging and so on. In addition, a vacuum feeding system can also be selected to improve the ease and efficiency of operation. Because of its special design and function, V-type mixer has been widely used in many powder mixing application scenarios, especially in pharmaceutical, food, chemical, metallurgical and other industries.

Ⅱ Equipment advantages

2.1. Compact structure, simple operation: The design of V-type mixer is simple and compact, which is easy for the operator to feed, discharge and clean. At the same time, the equipment is stable and reliable during operation, and almost no noise is generated. This makes it ideal for use in environments that require quiet or cleanliness, such as laboratories or pharmaceutical production workshops.

2.2. High mixing uniformity: Thanks to the unique design of the V-type mixer, the material can be continuously thrown and turned during the mixing process, so as to achieve a fast and uniform mixing effect. This high uniformity of mixing effect is particularly important for powder processing, especially for products requiring precise proportions (such as pharmaceutical products).

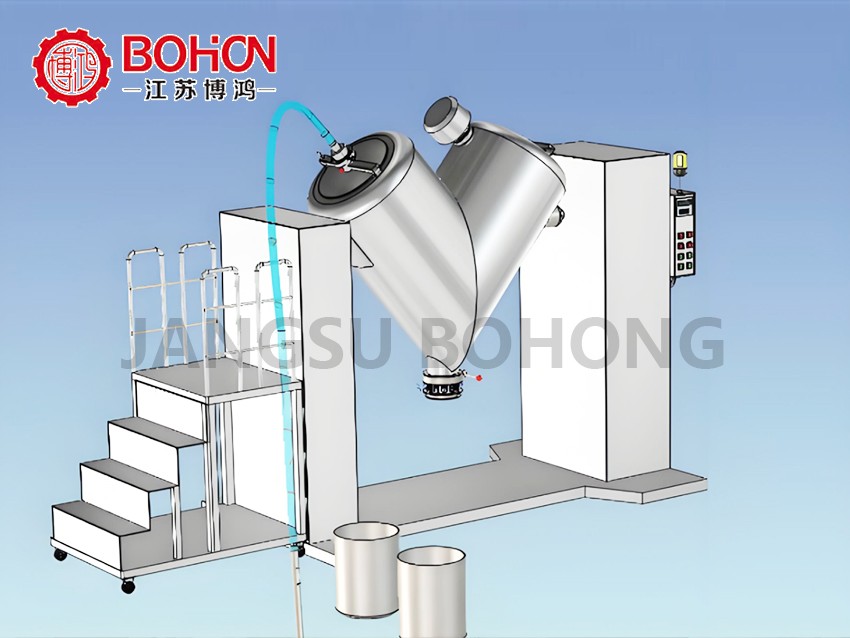

2.3. Dust-free operation: V-type mixer can be equipped with vacuum feeding system and disc valve discharge device, avoiding the dust problem that may occur during the feeding and discharging process of traditional equipment, so as to achieve dust-free operation. This not only improves the environmental hygiene of the workshop, but also effectively reduces the health hazards to the operator.

2.4. Safety of the electrical system: The electrical system of the V-type mixer is usually equipped with a motor overload protection device to ensure the safety and stability of the equipment during operation. The klystron and rotation control can precisely adjust the speed and stop position of the equipment to facilitate accurate positioning during unloading, reducing errors and waste.

2.5. Adaptability for different materials: For materials with poor fluidity, V-type mixer can add a forced agitator to help materials mix more fully. In addition, for mixing conditions where liquid needs to be added, spray devices can also be equipped to ensure that the liquid can be evenly distributed in the powder, so as to avoid the problem of material caking or uneven distribution.

2.6. Heating or cooling function: In some specific applications, the temperature control of the material is crucial. V-type mixers can be equipped with jacketing devices on demand for heating, drying or cooling materials. This gives the device great advantages in some temperature-sensitive material handling, such as heating mixing in the food industry or cooling treatment in the chemical industry.

Ⅲ The working principle of the equipment

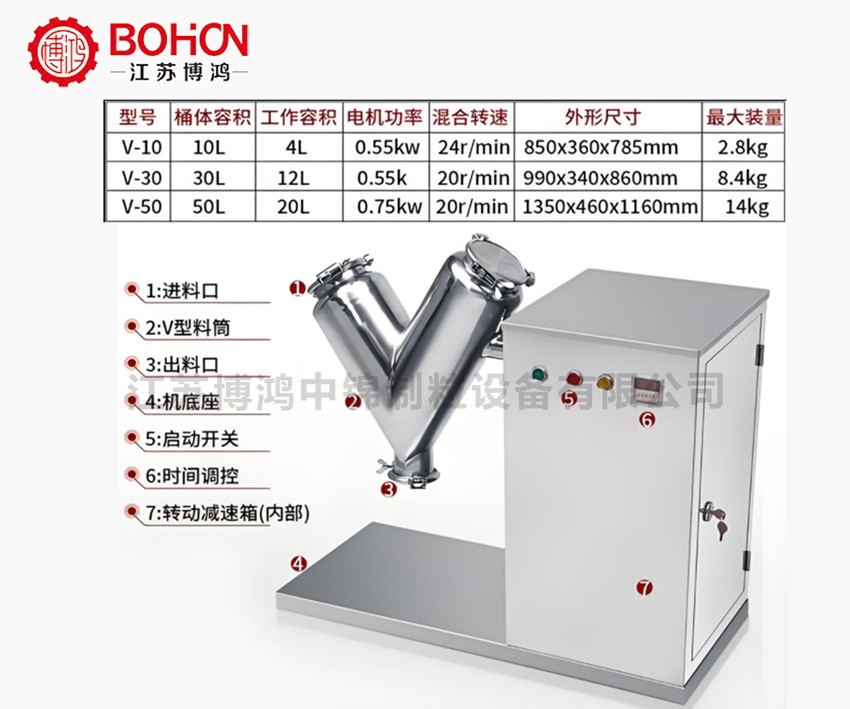

The core structure of V-type mixer is composed of drum, equipment support and power part. The drum design is V-shaped, and the two drum bodies are connected to form a slanting V-shaped, which can effectively increase the mixing movement range of the material and ensure that the material is fully moved during the mixing process.

In the mixing process, the material is loaded into the drum, as the equipment starts, the drum begins to rotate, the material in the cylinder body is constantly lifted, sprinkled and staggered, so as to achieve a rapid mixing effect. Due to the V-shaped shape of the drum, the material is constantly concentrated in the middle under the action of gravity, and then thrown upward again and spread outward. This continuous alternating movement allows the material to be evenly distributed throughout the barrel for efficient and dead-end mixing.

For some materials with poor fluidity, the equipment can also add mixing paddles in the drum to force mixing while the drum is rotating, further improving the mixing efficiency and uniformity.

Ⅳ Application scenario

4.1. Pharmaceutical industry: In the pharmaceutical industry, many drugs need to be prepared in the form of powder or particles, and the uniformity of the mixture is directly related to the effect of the drug. The V-type mixer, due to its efficient mixing performance, can ensure that the powder of different components is evenly mixed to avoid the difference in efficacy caused by the uneven distribution of drugs.

4.2. Food industry: In the process of food processing, many powdered or granular raw materials need to be mixed. Such as coffee powder, milk powder, seasoning and so on. The mixing of these products is not only required to be uniform, but also to avoid dust pollution. The dust-free operation function of the V-type mixer has great advantages in this field.

4.3. Chemical industry: In chemical production, many products are mixtures composed of various powders or particles. The V-type mixer can add the right amount of liquid during the mixing process, or heat or cool the material during the mixing process to ensure the best mixing effect.

4.4. Other industries: In addition to the above applications, V-type mixer is also widely used in ceramics, metallurgy, dyes and other industries. The production of powder products in these industries has high requirements for mixing uniformity, temperature control and dust-free operation, and V-type mixers can well meet these needs.

V-type mixer produced by Jiangsu Bohong Mixing Production Company has the advantages of compact structure, simple operation and high mixing uniformity, and has a wide range of adaptability in various powder mixing applications. Through reasonable design and multi-functional configuration, it can not only handle ordinary powder mixing tasks, but also deal with poor fluidity, need to add liquid mixing or temperature control of special materials. In the future, with the further development of technology, the application scenarios of V-type mixer in various industries will be more extensive, providing more efficient and safer solutions for powder mixing processing.
