PAM series vertical high-precision mixer produced by Jiangsu Bohong Mixing Equipment Company is an efficient wire type mixing equipment, especially suitable for high-precision mixing tasks, can quickly and effectively mix a variety of powder materials, especially in the need for strict control of temperature, trace composition ratio and aggregate dissolution occasions.

PAM series vertical high precision mixer equipment design is unique, the spindle adopts a single shaft structure, and equipped with a special design of tooth disk type screw belt, in order to achieve efficient and uniform mixing effect. Here are the main advantages of the device, how it works, and optional configuration items.

Ⅰ、PAM series vertical high precision mixer (high efficiency wire mixing) - equipment advantages

1.1Spindle design and mixing principle

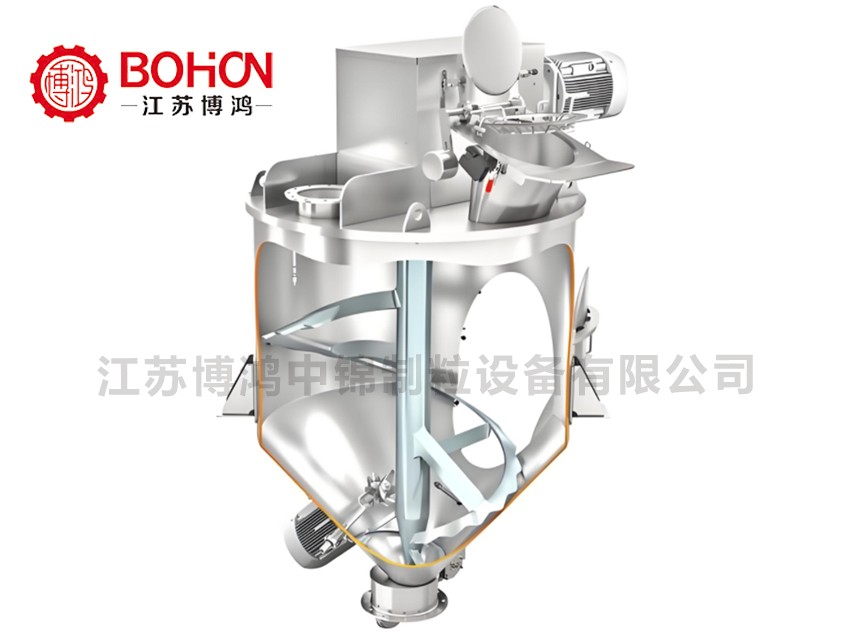

The main shaft of PAM series vertical high-precision mixer is composed of a single shaft and a toothed disc screw belt. When the screw belt rotates, it can quickly drive the material to carry out multidimensional movement in the cylinder body. The ribbon can not only push the material from the bottom to the top, but also form a center fall under the action of gravity, resulting in a macroscopic convective effect. At the same time, the tooth disk design ensures that the material particles have different linear velocities at different points, which in turn produces turbulent effects at the microscopic level. Through the combined action of macroscopic convection and microscopic turbulence, the materials can be mixed quickly to form a uniform mixing effect.

1.2 High speed knife mixing

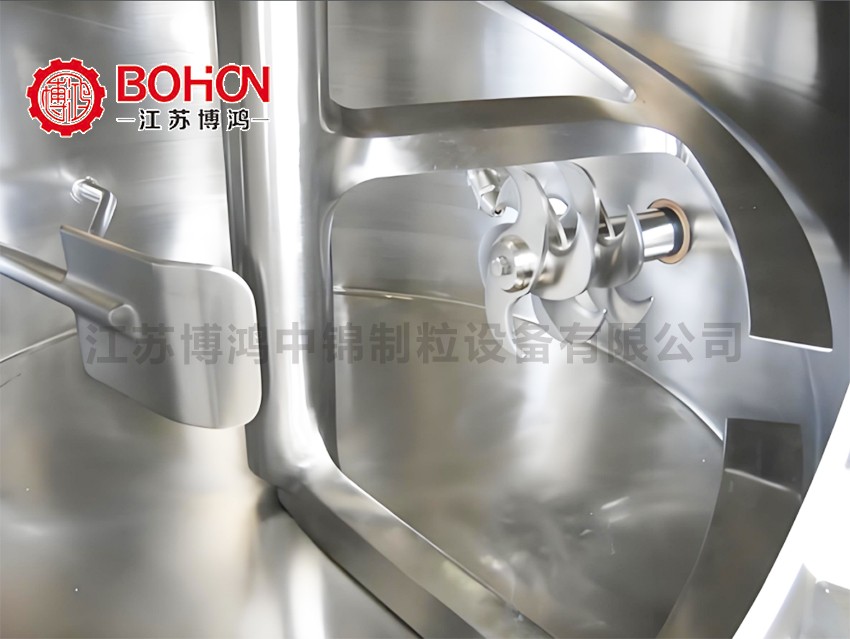

PAM series mixers can be equipped with high-speed flying knife device to enhance mixing effect and shorten mixing time by increasing shear force between materials. The flying knife is especially suitable for powdered materials containing liquid additions, which can effectively depolymerize small clumps in the material, ensuring uniform distribution of liquid and avoiding the formation of clumps.

1.3Adapt to a variety of material forms

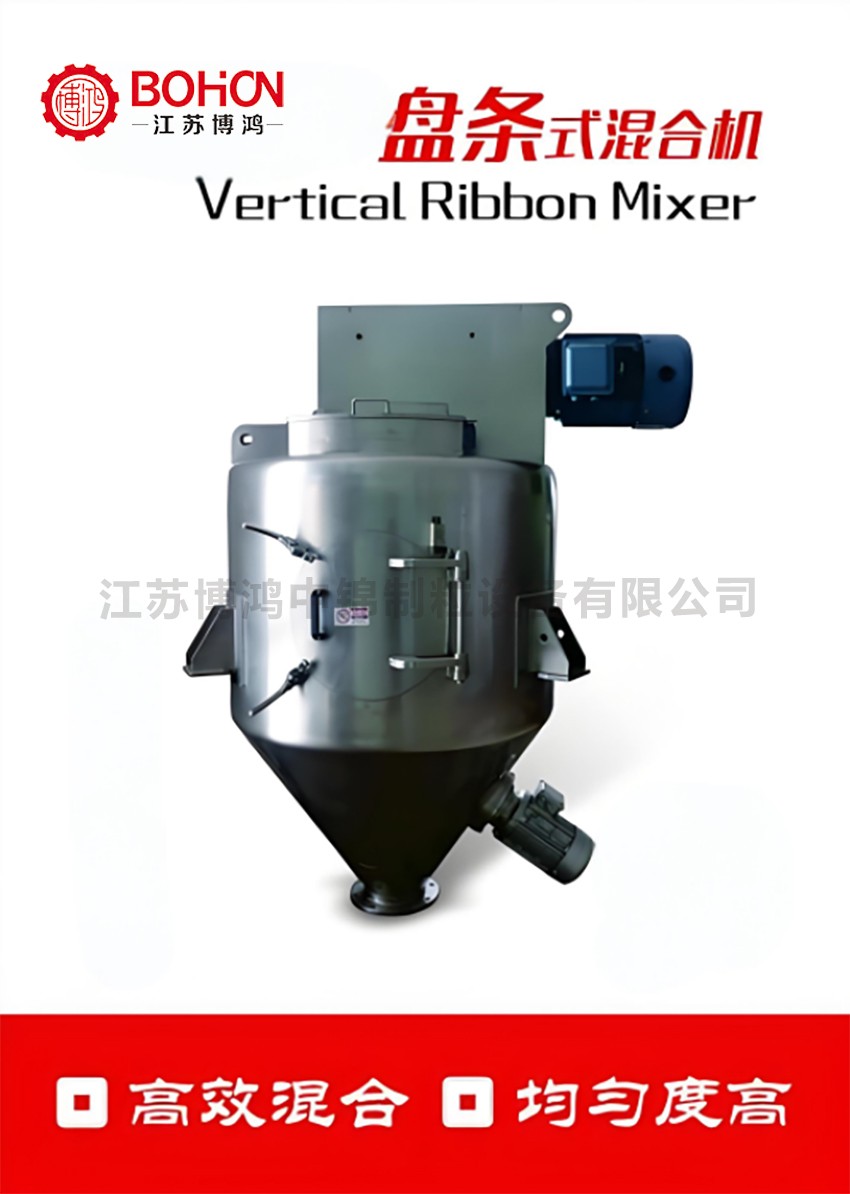

In standard configuration, the cylinder of the PAM series mixer is a cylinder with a conical bottom, but it can be customized to the customer's needs in a flat bottom design, and by adding a bottom scraper to assist the discharge. This design can not only reduce the installation height of the equipment, adapt to the space limitation of the workshop, but also improve the discharge efficiency of the materials with poor fluidity after mixing.

1.4Convenient cleaning and maintenance

The mixer is equipped with a side access door for inspection and cleaning of the inside of the cylinder. The access door is designed flush with the cylinder to avoid the blind area or material residue generated in the mixing process. In addition, the flap valve on the bottom is designed to be mounted flush for easy manual or pneumatic discharge.

Ⅱ PAM series vertical high precision mixer (high efficiency wire mixing) - equipment advantages analysis

The PAM series vertical high-precision mixer produced by Jiangsu Bohong Mixing Equipment Company has a number of technical advantages, which can meet the high-precision mixing needs in different scenarios:

2.1 High Precision mixing : PAM mixers enable the addition of extremely high ratios of trace ingredients, as low as 1:100,000, suitable for industrial applications requiring precise ratios, such as pharmaceutical or chemical production.

2.2 Low heat production : Almost no heat is generated during the mixing process, so it is particularly suitable for handling temperature-sensitive materials, such as certain pharmaceuticals, cosmetics or special food additives.

2.3 Multi-functional mixing capability : The high-speed cutter provides powerful mixing and depolymerization, especially for processes requiring rapid mixing or liquid addition, significantly reducing production time.

2.4 Low loading requirements : The equipment has low minimum loading requirements to ensure efficient operation even in small batch production.

2.5 Complete discharge and no residue : Design optimization ensures that the material can be completely discharged during discharge, reducing residues inside the equipment and ensuring high cleanliness between production batches.

2.6 Easy to clean : The equipment supports dry cleaning and wet cleaning operations, and the cleaning process is simple and fast, suitable for the production line with frequent material changes.

2.7 High heat transfer rate : Especially suitable for the production process that requires heating or cooling of powder, which can effectively improve production efficiency.

Ⅲ PAM series vertical high precision mixer (high efficiency wire mixing) - equipment selection project

In order to meet the specific needs of different customers, PAM series vertical high-precision mixers offer a range of optional configurations to meet the needs of diverse production processes:

3.1CIP online cleaning system : The equipment can be equipped with CIP (cleaning in situ) cleaning ball system for automatic cleaning of the cylinder and discharge valve to ensure that the equipment can be kept clean without manual intervention, suitable for industries with high hygiene requirements such as food and pharmaceutical.

3.2Heating/cooling jacket : PAM mixer can be optional by steam, thermal oil or water heating or cooling jacket, suitable for the need to control the temperature of the material, such as powder heating or cooling operations.

3.3 Vacuum drying and degassing : For special process occasions that require vacuum drying or degassing, the equipment can be customized for vacuum operation, and the drying or degassing effect can be achieved by removing gas or water from the material during the mixing process.

3.4Multiple feeding and discharging methods : The equipment provides a variety of feeding and discharging methods to adapt to the layout needs of different production lines. For example, liquid dosing can be carried out through a nozzle mounted on the top of the container, ensuring that the liquid is evenly added to the powdery material.

3.5 Filling system : In addition to nozzles, the equipment can also provide the necessary filling pump and liquid storage tank to ensure that the liquid is accurately added during the mixing process.

3.6Flat-bottom short design : For customers with limited plant height, PAM series mixer provides flat-bottom short design to reduce the total height of the equipment. The flat bottom design is also equipped with a scraper to ensure faster discharge and reduce material residue.

3.7 Multi-material production : The equipment can be made of carbon steel, stainless steel (SS304, SS316/316L), titanium alloy, duplex stainless steel and Hastelloy and other materials. For materials with strong wear, hardened steel can be selected to make contact parts, or wear resistant materials can be coated on the surface to extend the service life of the equipment.

3.8explosion-proof configuration : Jiangsu Bohong can provide explosion-proof equipment suitable for flammable and explosive environment according to customer needs, and the equipment meets ATEX, IECEx and other explosion-proof certification standards to ensure safe production.

The PAM series vertical high-precision mixer produced by Jiangsu Bohong Mixing Equipment Company has become an important tool in modern industrial production with its efficient mixing capacity, diverse adaptability and excellent user experience. Whether it is pharmaceutical, food, chemical or other fine processing industries.

PAM series vertical high-precision mixer manufactured by Jiangsu Bohong Mixing Equipment Company provides high-precision and low-residue mixing solutions for enterprises. At the same time, through a variety of optional items, the equipment can be flexibly configured according to the specific production needs, bringing customers a more efficient and safer production environment.
