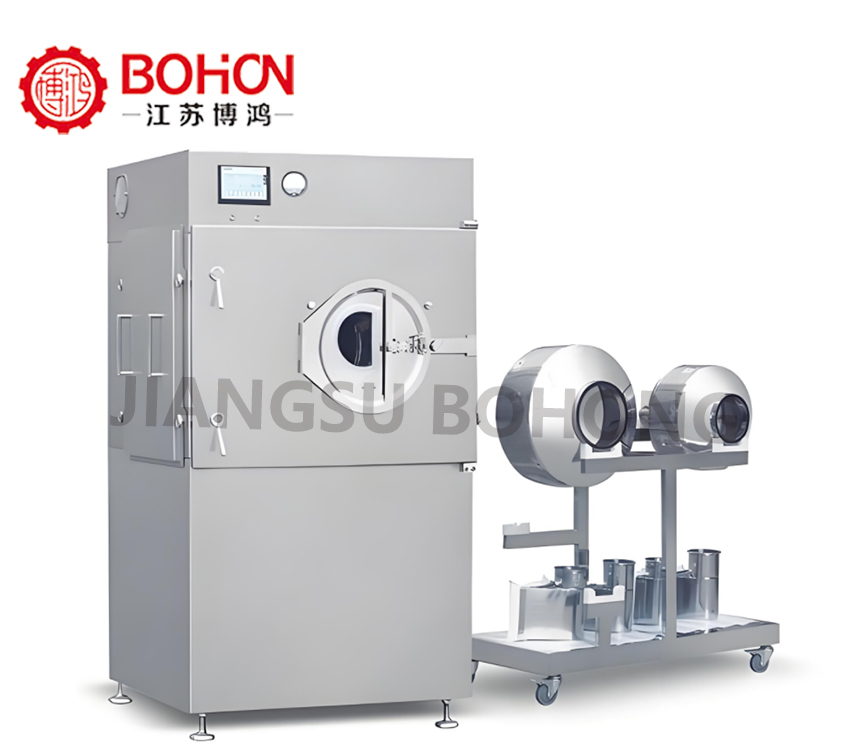

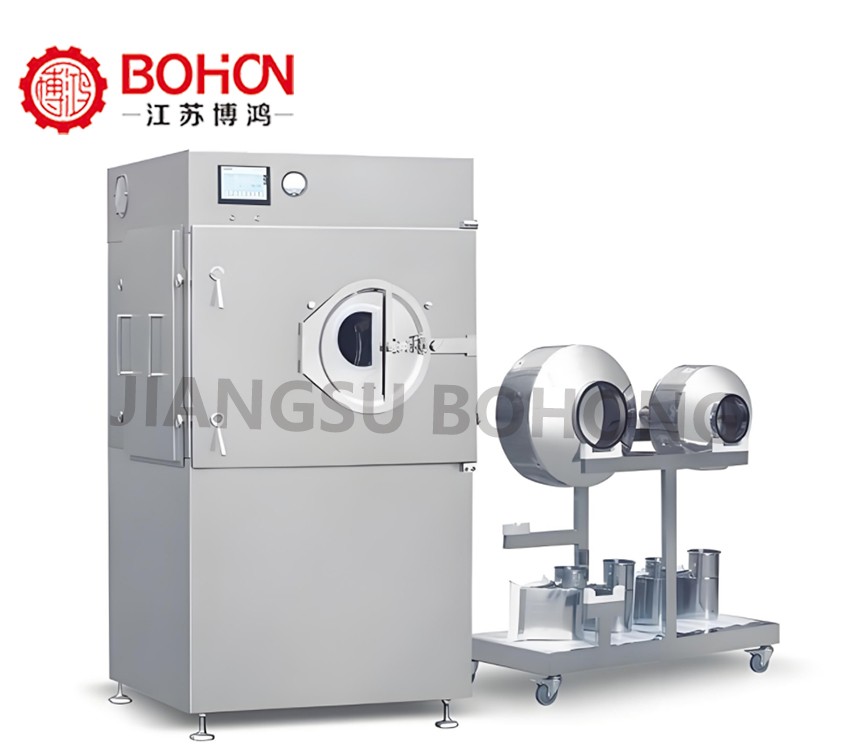

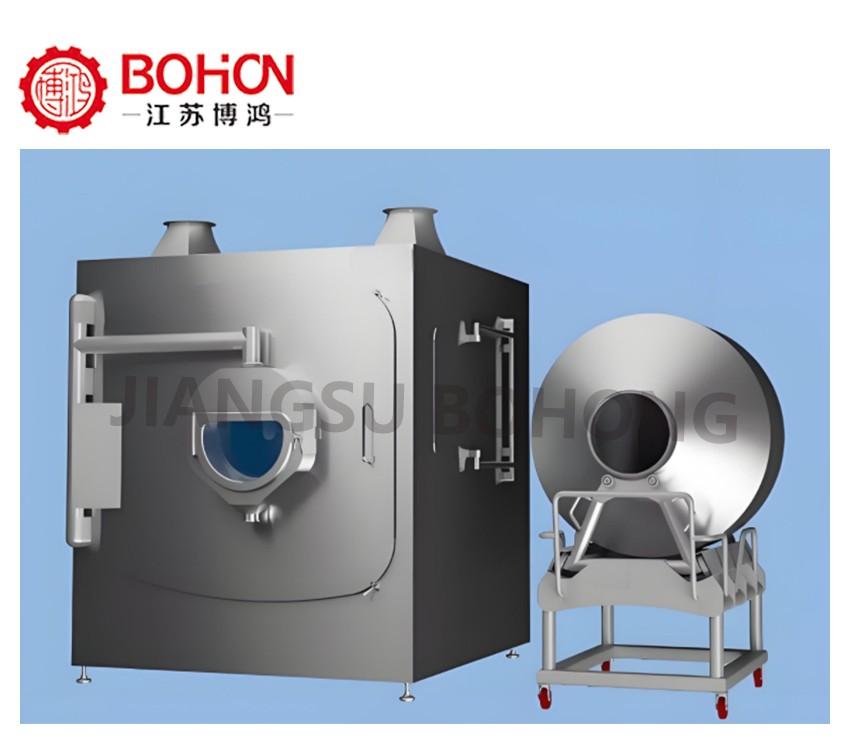

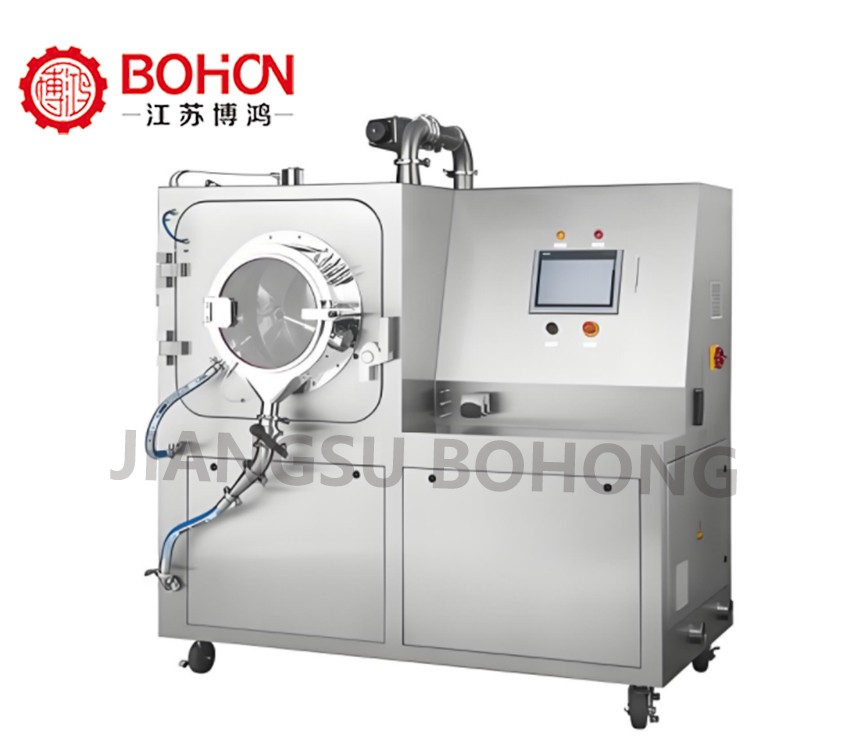

The BGB-D Series High-Efficiency Coating Machine

The BGB-D Series High-Efficiency Coating Machine

The BGB-D Series High-Efficiency Coating Machine is a coating equipment produced by Jiangsu Bohong Coating Equipment Co., Ltd. that integrates energy-saving, high-efficiency, safety, and cleanliness. It is widely used in the pharmaceutical and food industries. Its wide range of applications and excellent performance features have made it widely recognized in the pharmaceutical and food industries. The high-efficiency coating machine equipment not only improves the coating efficiency and quality, but also reduces material waste, which meets the efficient, energy-saving, and safe requirements of modern industrial production.

1. The BGB-D Series High-Efficiency Coating Machine is designed for coating tablets, capsules, and other solid dosage forms.

1.1**Wide Application in Pharmaceutical Industry**

In the pharmaceutical industry, coating is an indispensable step in the production of tablets and capsules. The BGB-D series coating machine can coat tablets, capsules and other pharmaceuticals with organic film coating, water-soluble film coating, and sustained-release and controlled-release coating. Through coating, not only can the appearance of the drug be improved, but also its stability can be enhanced, the bitter or unpleasant taste of the drug can be masked, and the release rate of the drug can be controlled, thereby improving the efficacy of the drug. The BGB-D series high-efficiency coating machine has superior performance in these coating processes, improving production efficiency for pharmaceutical enterprises and ensuring the quality of drugs.

1.2. **Wide Application in Food Industry**

In the food industry, the BGB-D series high-efficiency coating machine also has important applications. For example, it can be used for coating chocolate and candies to improve the appearance and enhance the storage stability of food products, thereby extending the shelf life. In addition, the equipment can also be used for the external coating process of seasonings and functional foods, providing more diverse tastes and textures for food products.

1.3. **Wide Applicability of Coating Materials**

The BGB-D series coating machine supports various coating applications with different materials, suitable for organic film, water-soluble film, and sustained/controlled release materials. This flexibility makes the equipment not only suitable for precise drug coating in the pharmaceutical industry, but also suitable for diverse coating needs in the food industry. Whether it is to improve product appearance, control drug release rate, or improve food shelf life, the equipment can effectively complete the coating task.

2 . Equipment Features of BGB-D Series High-Efficiency Coating Machine

The BGB-D series of high-efficiency coating machines manufactured by Jiangsu Bohong Coating Equipment Co., Ltd. are not only versatile in use, but also feature a series of advanced technical characteristics that ensure the efficiency, energy saving, and safety of the equipment in practical applications.

2.1.**Cleaning and Anti-blocking Function**

The equipment is equipped with a cleaning and anti-blocking function, which can effectively prevent the blockage problem of the spray gun during coating. Blockage of the spray gun is a common technical problem in coating process, which can cause uneven coating or even stop production. The cleaning function of BGB-D series coating machine ensures the continuity of coating process, improves production efficiency, and saves production time.

2.2. **Intelligent Control System**

The BGB-D series of high-efficiency coating machines is equipped with an intelligent control system consisting of PLC (Programmable Logic Controller) and HMI (Human-Machine Interface). The design is reasonable and the programming is flexible, suitable for different pharmaceutical manufacturing requirements. Through the control system, users can achieve full automation of the coating process, from temperature, air speed to spraying volume can be precisely controlled. This system ensures the stability and repeatability of the coating process, meets the requirements of GMP, and ensures the quality of the product.

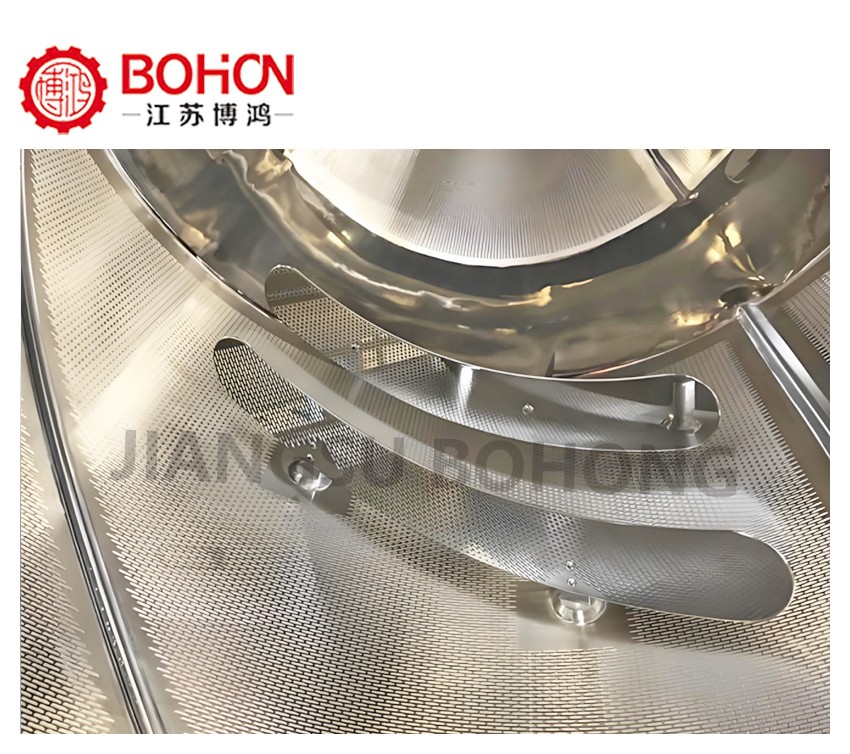

2.3. **Efficient Mixing and Turning System**

In the high-efficiency coating machine, the core material (uncoated pellets) can be smoothly turned and frequently exchanged under the action of the streamlined guide plate stirrer. This design eliminates the problem of core material falling from a high place and colliding in traditional equipment, effectively avoiding fragmentation and edge chipping, and improving the yield. Meanwhile, the narrow surface design of the guide plate prevents coating materials from adhering to the surface, reducing material waste and improving coating quality.

2.4. **Efficient Spray Gun Design and Savings on Coating Material**

The spray gun used in the efficient coating machine is designed and manufactured by Jiangsu Bohong, which has the advantages of uniform misting and large spray coverage. The universal adjustable nozzle is not affected by the amount of material loaded, ensuring the uniformity of coating. In addition, the spray gun has a function to prevent blockage and cleaning, which enables the coating process to continue continuously, shortening the coating time and saving coating material, thus improving production efficiency.

2.5. **Vacuum and Wind Speed Control in Coating Pot**

The efficient coating machine is equipped with a display and control function for the negative pressure in the coating pot, which can ensure the stability of the coating process. The display and control functions for wind speed and temperature can be adjusted flexibly according to the needs of different materials to ensure the uniformity and quality of coating.

2.6. **Constant Pressure Variable Peristaltic Pump Design**

The coating machine adopts a constant pressure variable peristaltic pump design, eliminating the return pipe. This design automatically adjusts the rotating radius of the rollers as the pressure changes, so that the output of the slurry is automatically balanced with the spraying volume, ensuring stable misting effects. At the same time, this design simplifies the spraying system, reducing the possibility of clogging the nozzle, further saving the material, and the equipment cleaning is also more convenient.
